Low Inductance, high reliability, high energy density
High voltage ratings (up to 150VDC)
High peak current (up to 250kA)

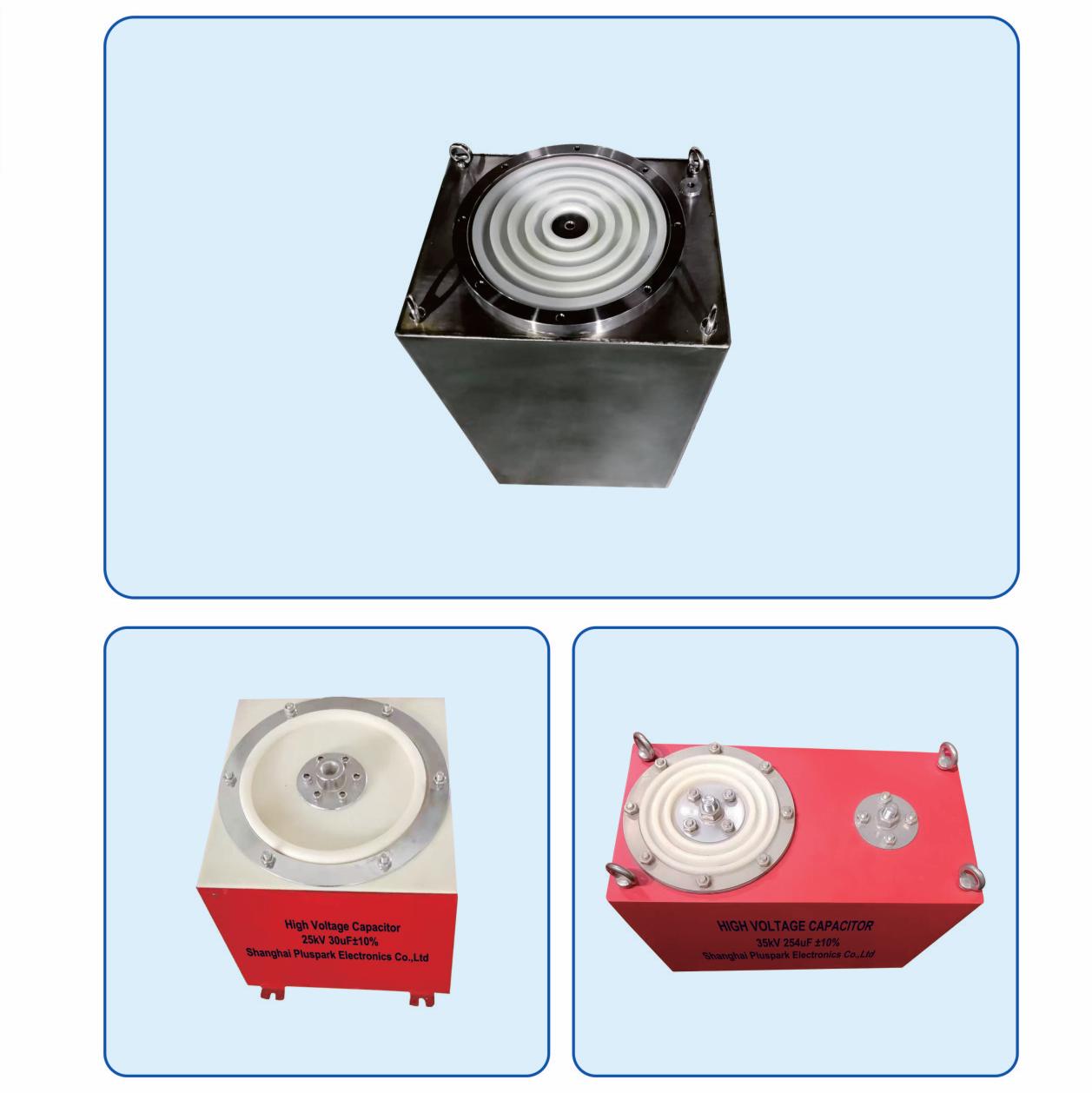

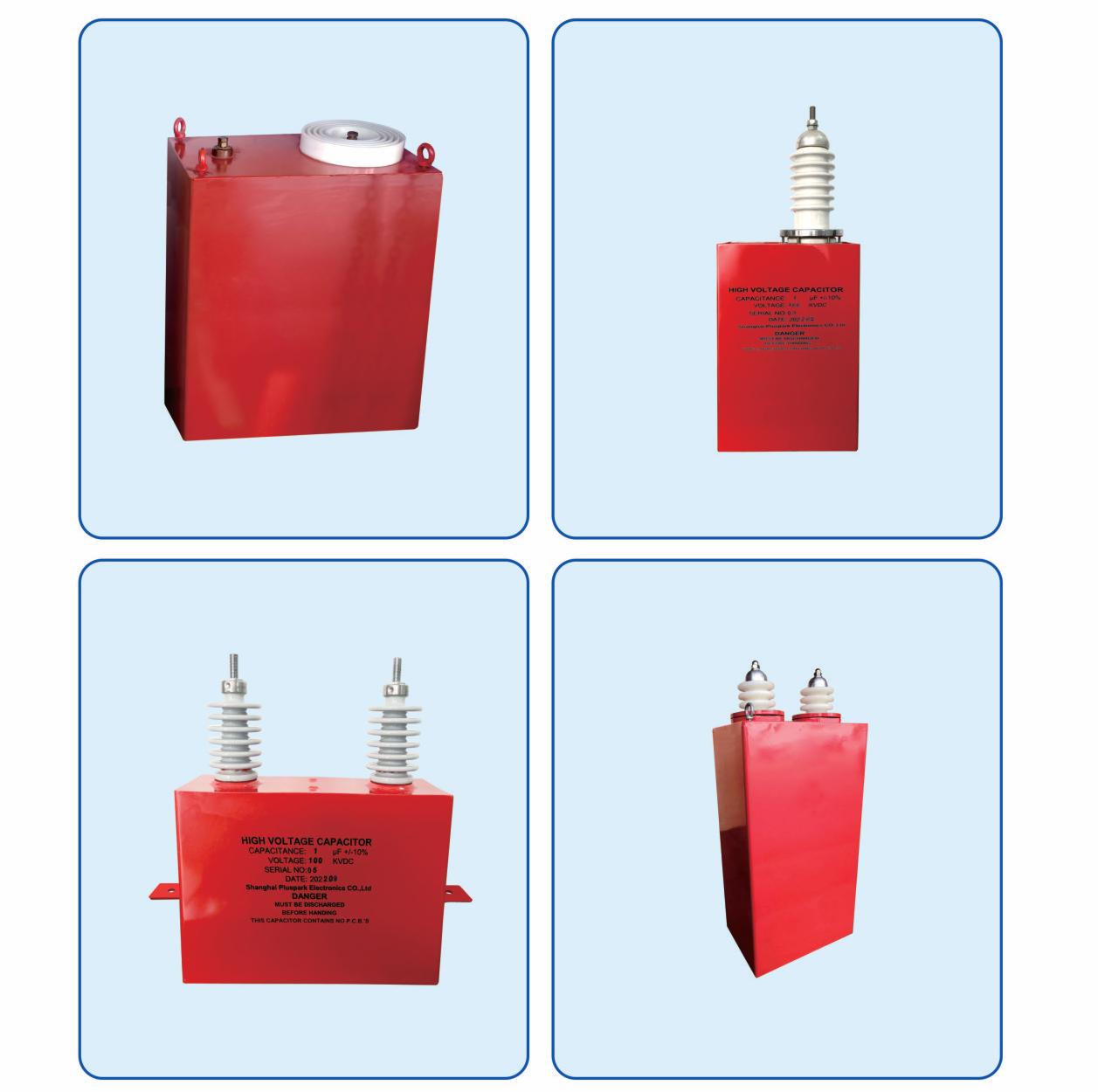

Multiple terminal options: low profile bushing one to two terminal, ring terminal, coaxial, ceramic bushing available upon request
Oil impregnated or dry epoxy construction

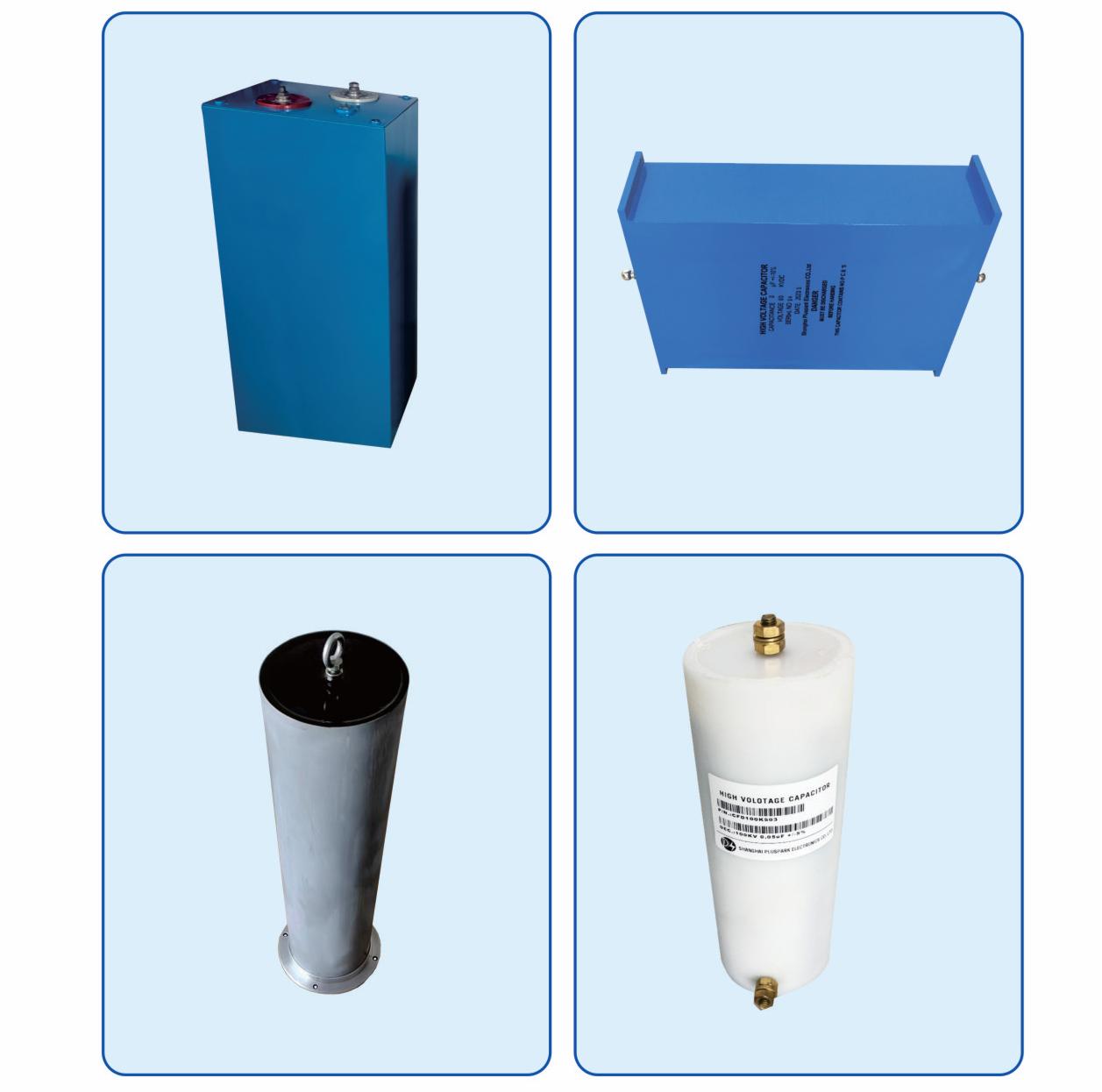

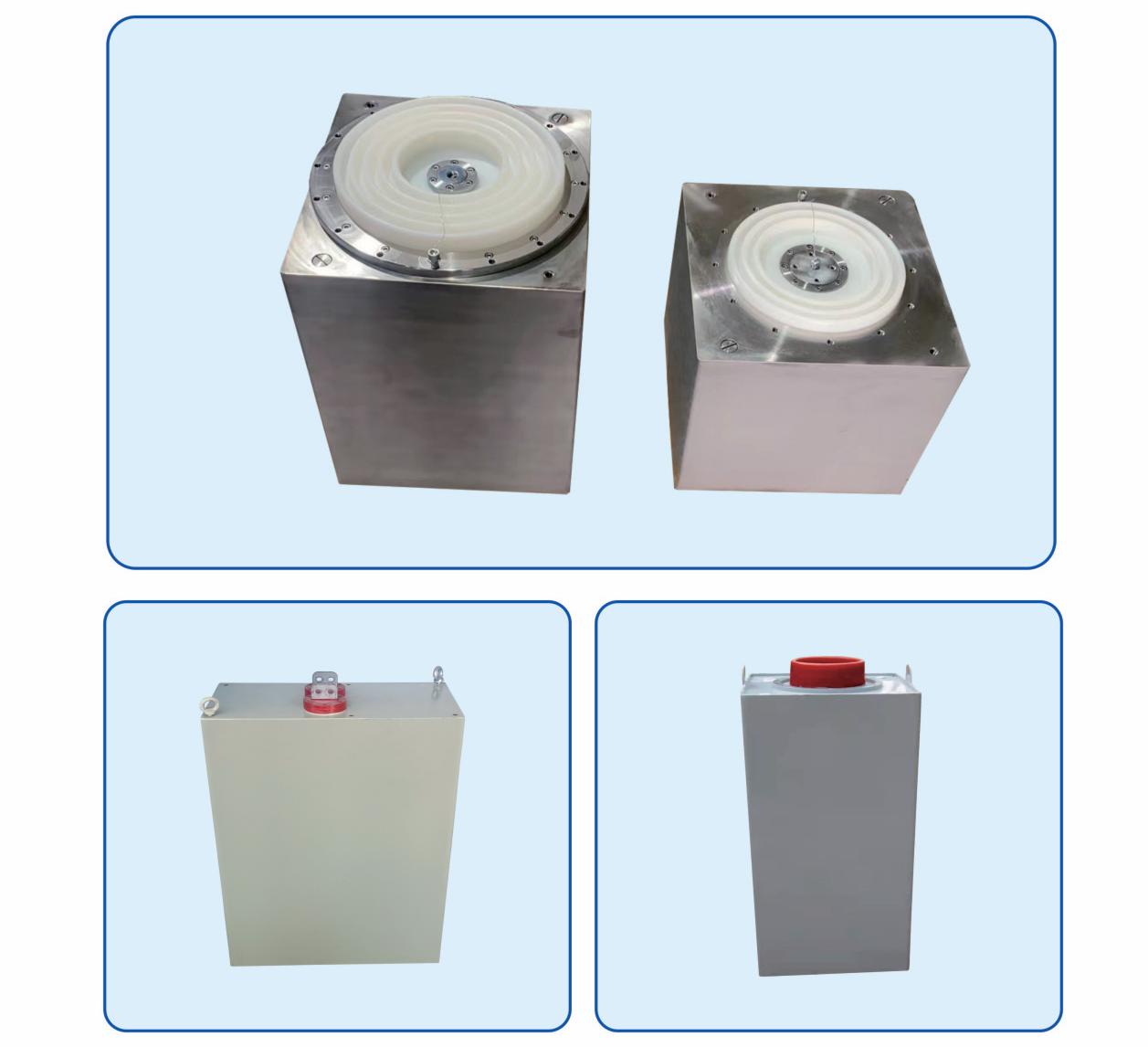

Metal and insulated plastic case design options
Application:
Marx generator banks, Energy storage, Pulse power, High energy, Research and development, Laser, Plasma, High power laser, Flash lamp, Industrial, Medical laser, Accelerators
Ratings:
Custom made designs are available upon request.
There are no products to list in this category.
